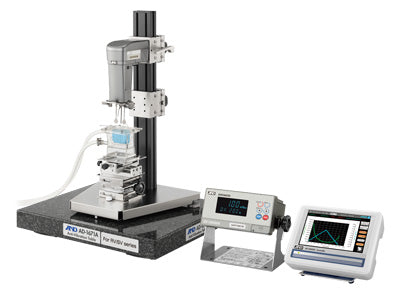

AND Weighing RV-10000A Tuning Fork Vibro Rheometer
Couldn't load pickup availability
Repeatability as high as 1% of the measured value (by S.D.) even with low viscosity sample fluids
Shear rate changes by controlling the sensor plate vibration amplitude
Easy setup/cleaning and very quick measurement (stabilization in 20 seconds)
Wide continuous measurement range (max. 0.3 to 25,000 mPa·s)
Little interference to the sample fluid
Possible to measure fluids in motion
Comes with a special controller for:
- Automatically changing the amplitude (shear rate) and capturing data in the manner set by the user
- Real-time graphing of viscosity variation with time, temperature, as well as shear rate
- Saving results (in CSV format) and graph screens (as JPEG images) in USB flash drives
User calibration function, including a simplified calibration using purified water
Sample fluid temperature control using the provided water jacket
Anti-corrosive, titanium sensor plates and temperature sensor
X-Y-Z stage, anti-vibration table (AD-1671A), positioning stopper, etc., as standard accessories
| Accuracy | ±3% (1 to 1000 mPa•s) when the amplitude is set to 0.4 mm |
|---|---|
| brand | AND Weighing |
| display | Vacuum Fluorescent Display (VFD) |
| list-price | 22955.00 |
| Manual | Manual_rv-10000a.pdf |
| part-number | RV-10000A |
| power-consumption | AC adapter / approx. 14 VA (including the AC adapter) |
| Spec Sheet | Spec-Sheet_rv-10000a.pdf |
