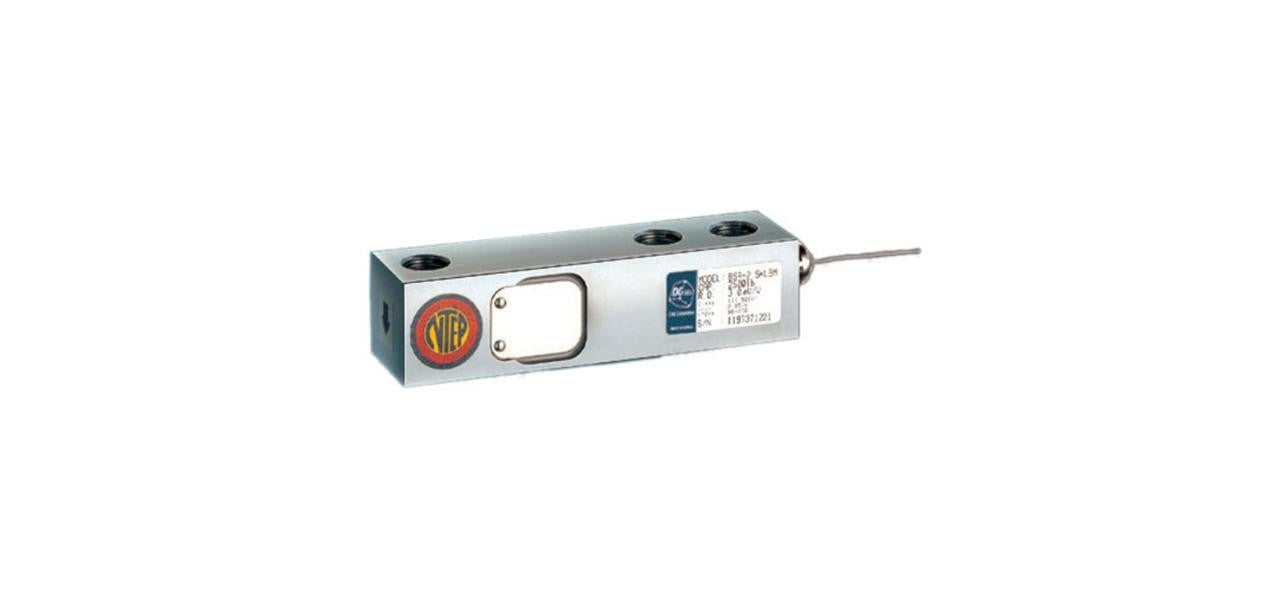

CAS BSA-2.5K Single Ended Beam Load Cell, IP66 Environmentally Sealed, Class III, NTEP, 2500 lb
Couldn't load pickup availability
CAS BSA single ended beam load cells are most commonly used in platform scales and other medium capacity weighing applications.
Features:
2500 lb capacity rating
High alloy steel construction, nickel plated
IP 66 rating
3 mV/V output
Load cell cable length 20 ft
1 year limited manufacturer's warranty
NTEP Approved CC 96-072A1
Safe overload up to 150% capacity
| brand | CAS |
|---|---|
| Bridge-Resistance | 350 ohms nominal |
| cable-length | 20 ft |
| capacity-lb | 2500 |
| Construction | tool steel, nickel plated |
| dimensions | 5.12" x 1.25" x 1.25" |
| Hole-Threading | 1/2-20UNF-2B |
| list-price | 116.00 |
| Load-Cell-output | 3.0 mV/V (Full Scale) |
| Load-Cell-Rated-Excitation | 10 VDC (maximum of 15 V) |
| manufacturer-part-number | BSA-2.5K |
| Operating-temperature | -30°C to 80°C |
| Spec Sheet | Spec_Sheet-Load_Cell_BSA.pdf |
| Warranty | 1 year limited manufacturer's warranty |
