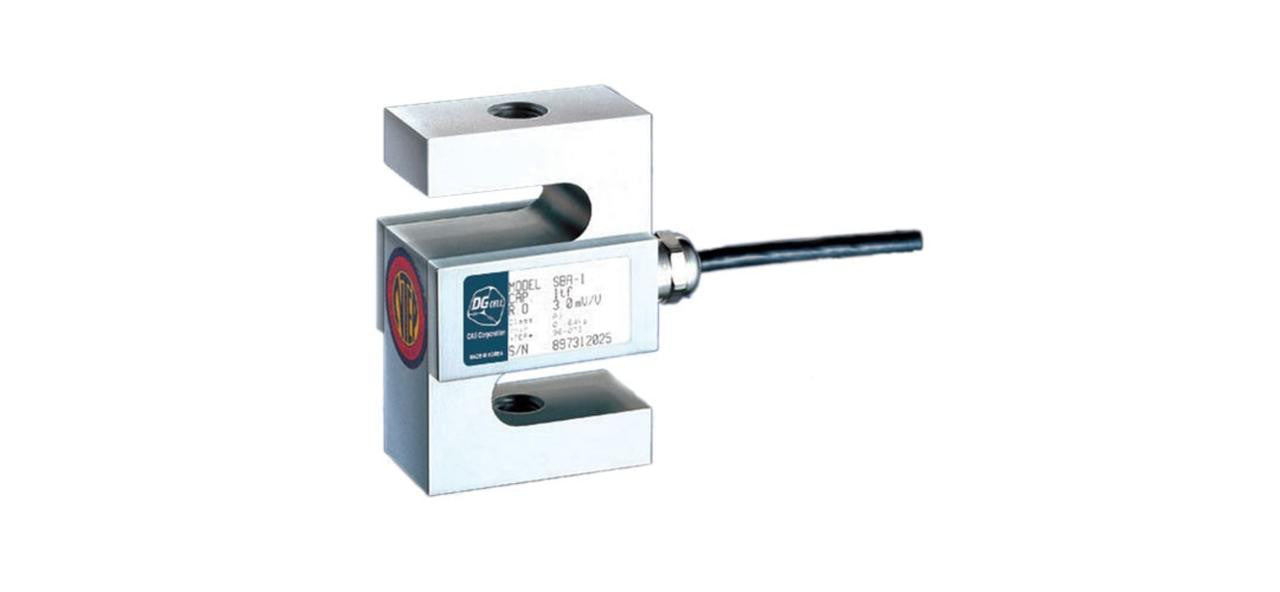

CAS SBA-1.5K S-Beam Load Cell Environmentally Sealed, Class III, NTEP, 1500 lb
Couldn't load pickup availability
Features:
1500 lb capacity rating
Nickel plated tool steel
IP 65 rating
3 mV/V output
Load cell cable length 20 ft
1 year limited manufacturer's warranty
NTEP Approved CC 96-073A1
Safe overload up to 150% capacity
| brand | CAS |
|---|---|
| capacity-lb | 1500 |
| Cell-Input-Resistance | 400 +/- 25 ohms |
| Cell-Output-Resistance | 350 +/- 3.5 ohms |
| Construction | tool steel, nickel plated |
| dimensions | 2" x 0.75" x 3" |
| Hole-Threading | 1/2 - 20UNF |
| list-price | 190.00 |
| Load-Cell-output | 3.0 mV/V (Full Scale) |
| Load-Cell-Rated-Excitation | 10 VDC (maximum of 15 V) |
| manufacturer-part-number | SBA-1.5K |
| Operating-temperature | -30°C to 80°C |
| Spec Sheet | Spec_Sheet-Load_Cell_SBA.pdf |
| Warranty | 1 year limited manufacturer's warranty |
