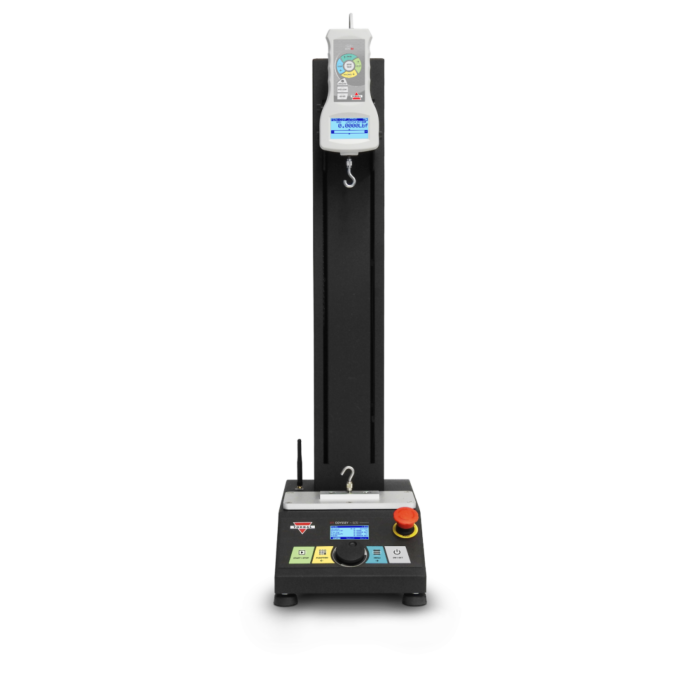

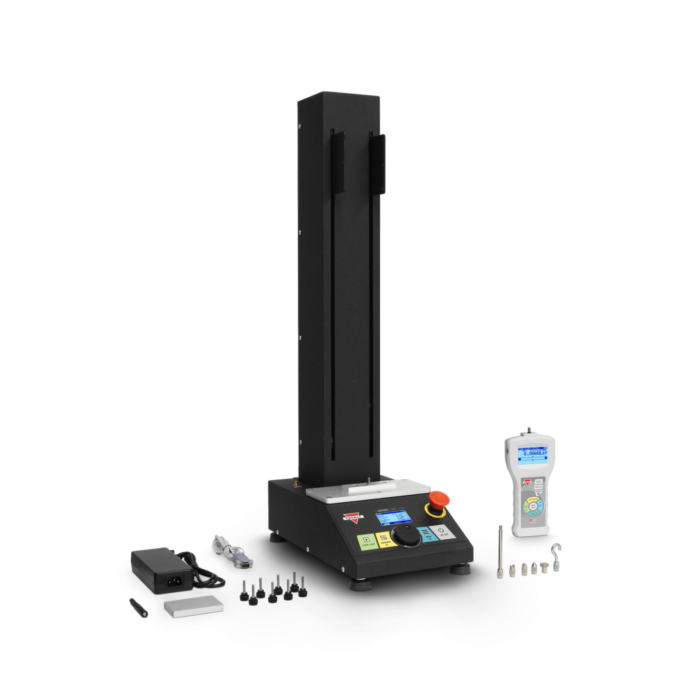

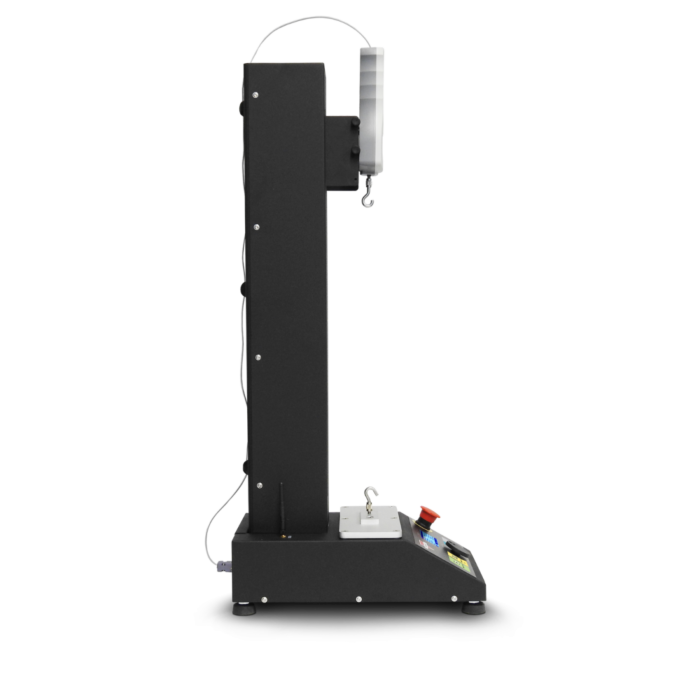

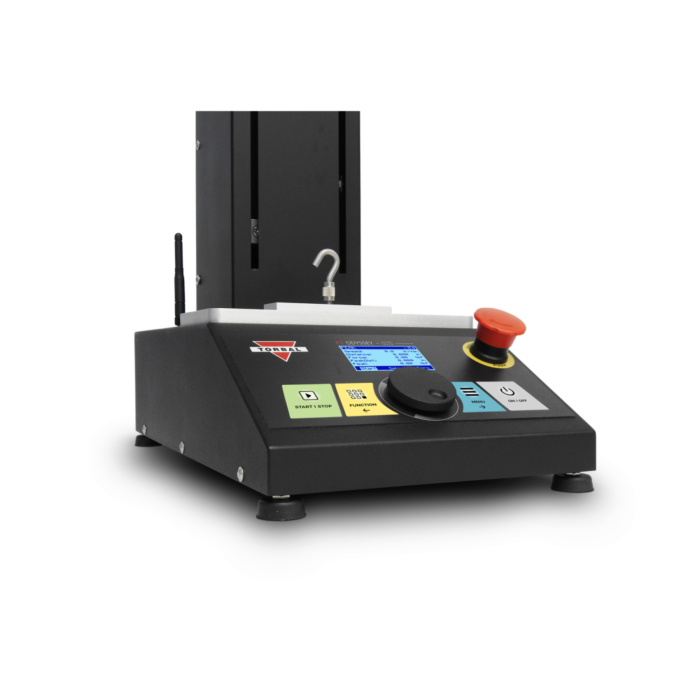

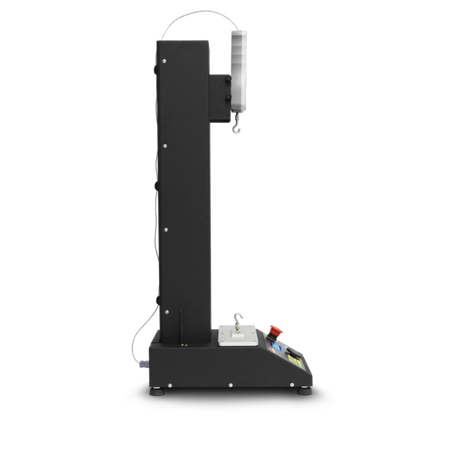

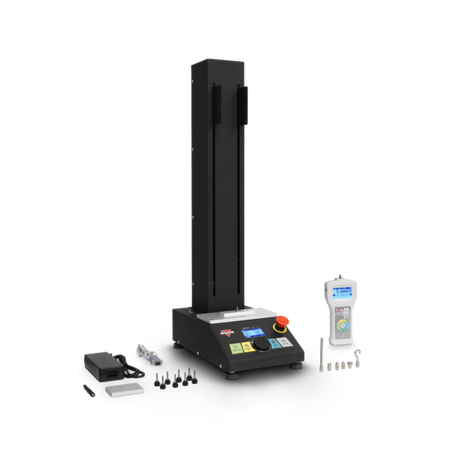

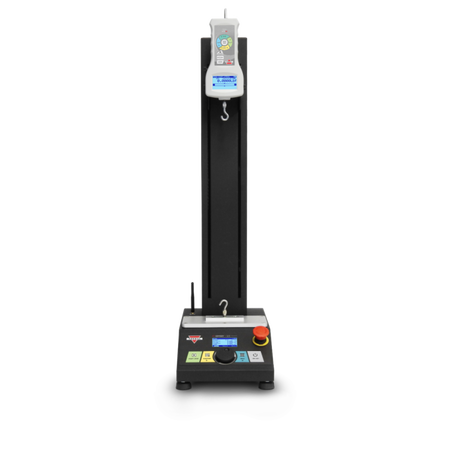

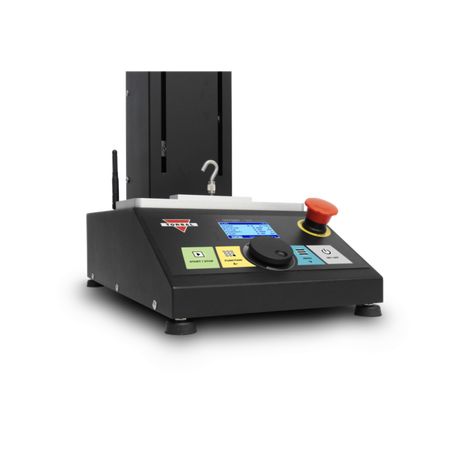

Torbal FTV100L-FB500 FT ODYSSEY STAND 19” Travel x 112lbF, Vertical, with FB500 Force Gauge, 100lbf x 0.02 lbf
Couldn't load pickup availability

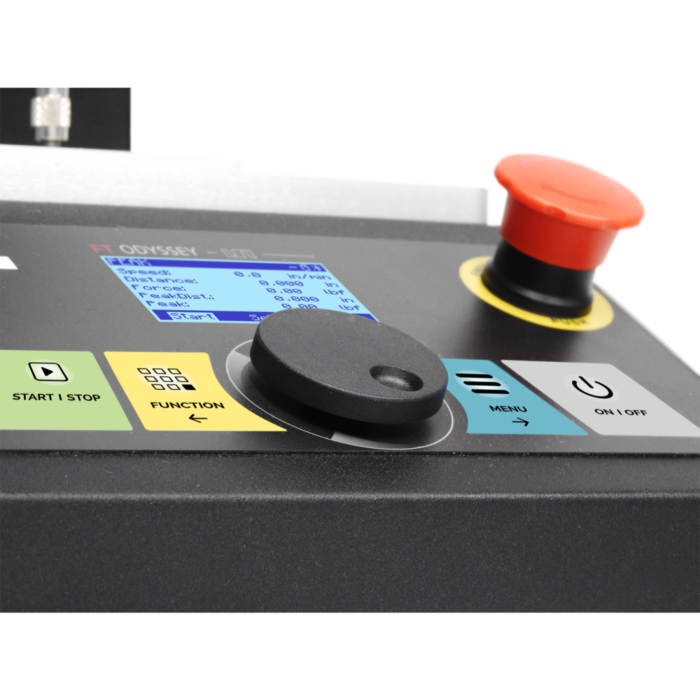

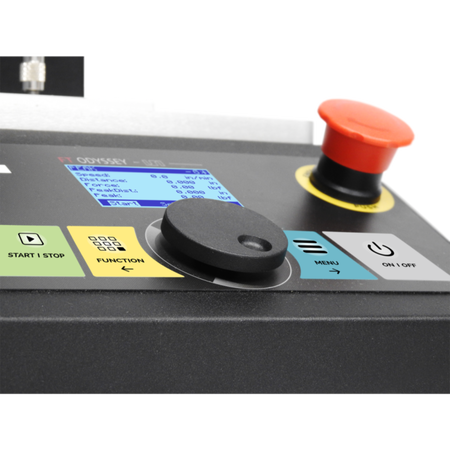

The TORBAL ODYSSEY series offers complete configurability and manageability of your force testing applications. The ODYSSEY is ideal for use in R&D, laboratory, or production settings where force measurements must be performed under strictly controlled conditions and variables. Optimized and fully compatible with all TORBAL force gauges. The series includes the FTV Vertical and FTH Horizontal models. The FTV is available in 11.8in and 19.6in travel range, with a maximum load capacity of 100lbF. The FTH has 11.8in of travel and a maximum load capacity of 100lbF. Both models are equipped with a built-in wireless data transmitter which allows for a cable-free connection of the force gauge to the test stand, thereby eliminating the need for cables or wires. The ODYSSEY is easily programmed through its five application modes: Peak, Cycle, Step, Advanced, and Manual. Each mode includes all essential configuration parameters to assure tests are performed with utmost precision and accuracy. Precise control of speed, distance, direction, and peak detection makes the ODYSSEY ideal for virtually any tension or compression testing application.
Features:
19” Travel
Test Stand Max Capacity: 112lbF | 500N
Orientation: Vertical
Wireless PC Connectivity
Ports: USB | RS232
Distance Force Gauge Shaft to Column: 2.75in | 70mm
Force Gauge Sampling Speed and Connection Type: FB THOR - Speed: 80Hz, Connection to test stand: Cable - 0
| brand | Torbal |
|---|---|
| capacity-lb | 100 |
| dimensions | 238mm x 407mm x 880mm |
| interfaces | BT Wireless, USB (B Type), RS232 |
| list-price | 5088.08 |
| Manual | FTV_FTH__Instruction_Manual.pdf.pdf |
| manufacturer-part-number | FTV100L-FB500 |
| maximum-speed | 0.4 in/min – 11.8 in/min | 10mm/min - 300mm/min |
| Operating-temperature | 50F – 104F | 10C – 40C |
| power | 100-240VAC 50/60Hz 120W / 24VDC 4A |
| readability-lb | 0.02 |
| Rigidity | 0.07 in | 1.8mm |
| speed-accuracy | +/- 1% |
| Speed-Resolution | 0.1 in/min | 1 mm/min |
| Travel-Accuracy | +/- 0.008 in | +/- 0.2mm |
| Travel-Distance | 19.6in | 500mm |
| Travel-Resolution | 0.001 in | 0.01mm |
| Weighing-Units | in/min, mm/min |
